Aspiration for PJSC "Ukrelevatorprom" (ADM)

As part of long-term cooperation, a comprehensive range of works was carried out, including the design, manufacture, installation and modernization of aspiration and dust suppression systems at the grain terminal.

Key project stages:

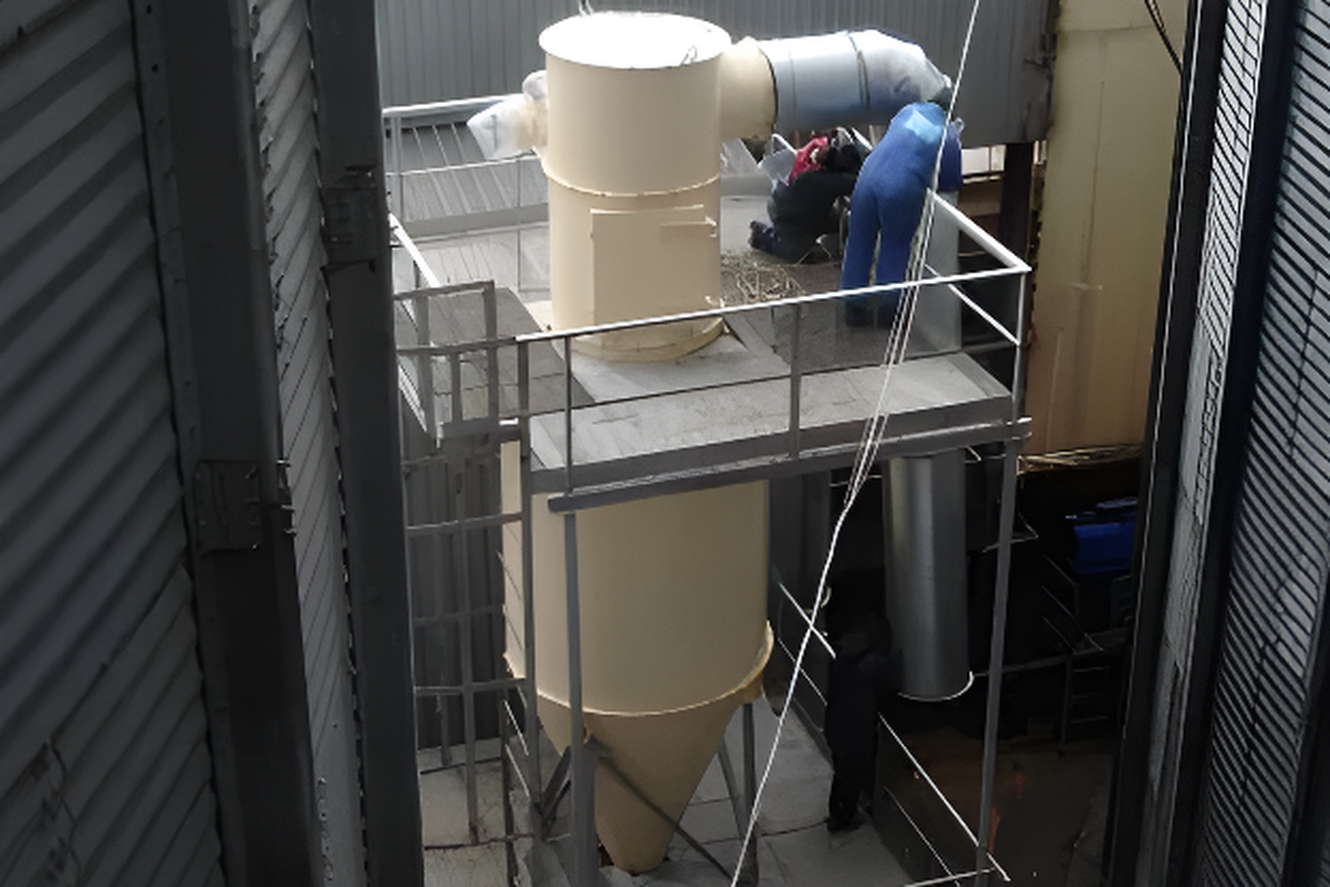

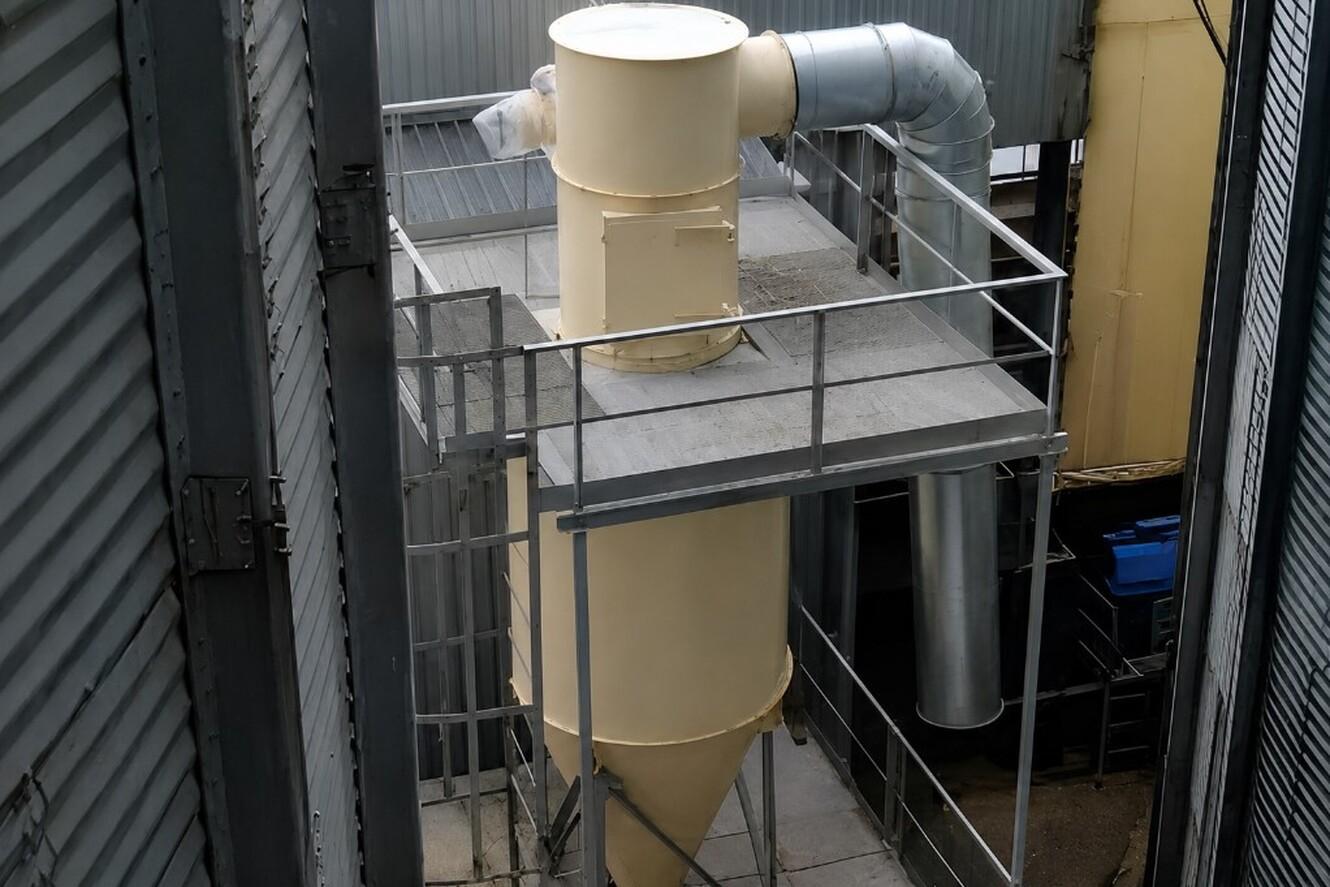

• 2008 — manufacture and installation of a dust suppression system for the truck receiving station using aspiration networks and cyclone filters.
• 2009 — modernization of dust filters.
• 2012 — manufacture of dust suppression systems for the terminal and equipping the SPM-1200 ship loader with a dust suppression system.
• 2013 — development of design solutions for dust suppression of hopper scales, the KL4 discharge box, conveyors and under-silo galleries.

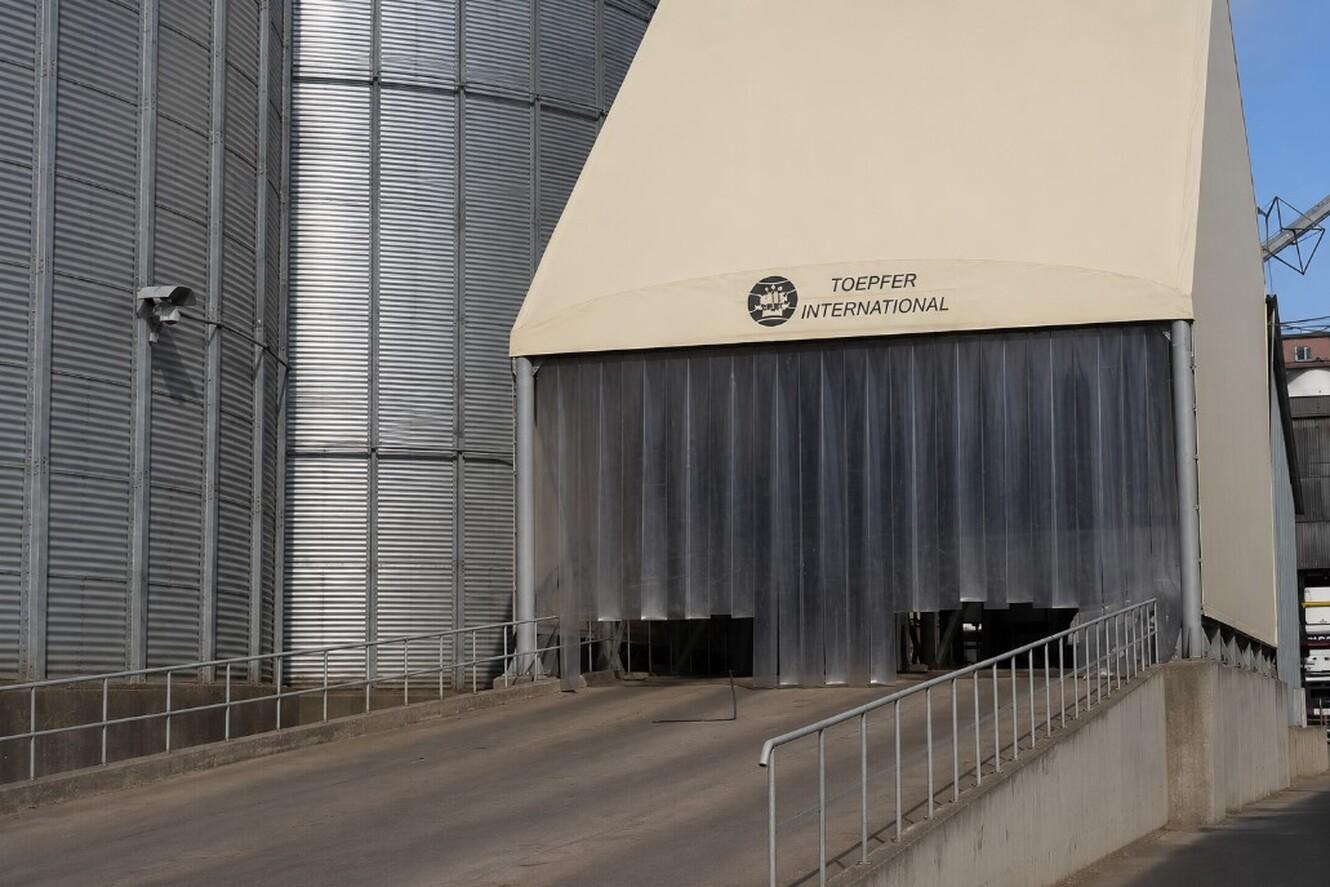

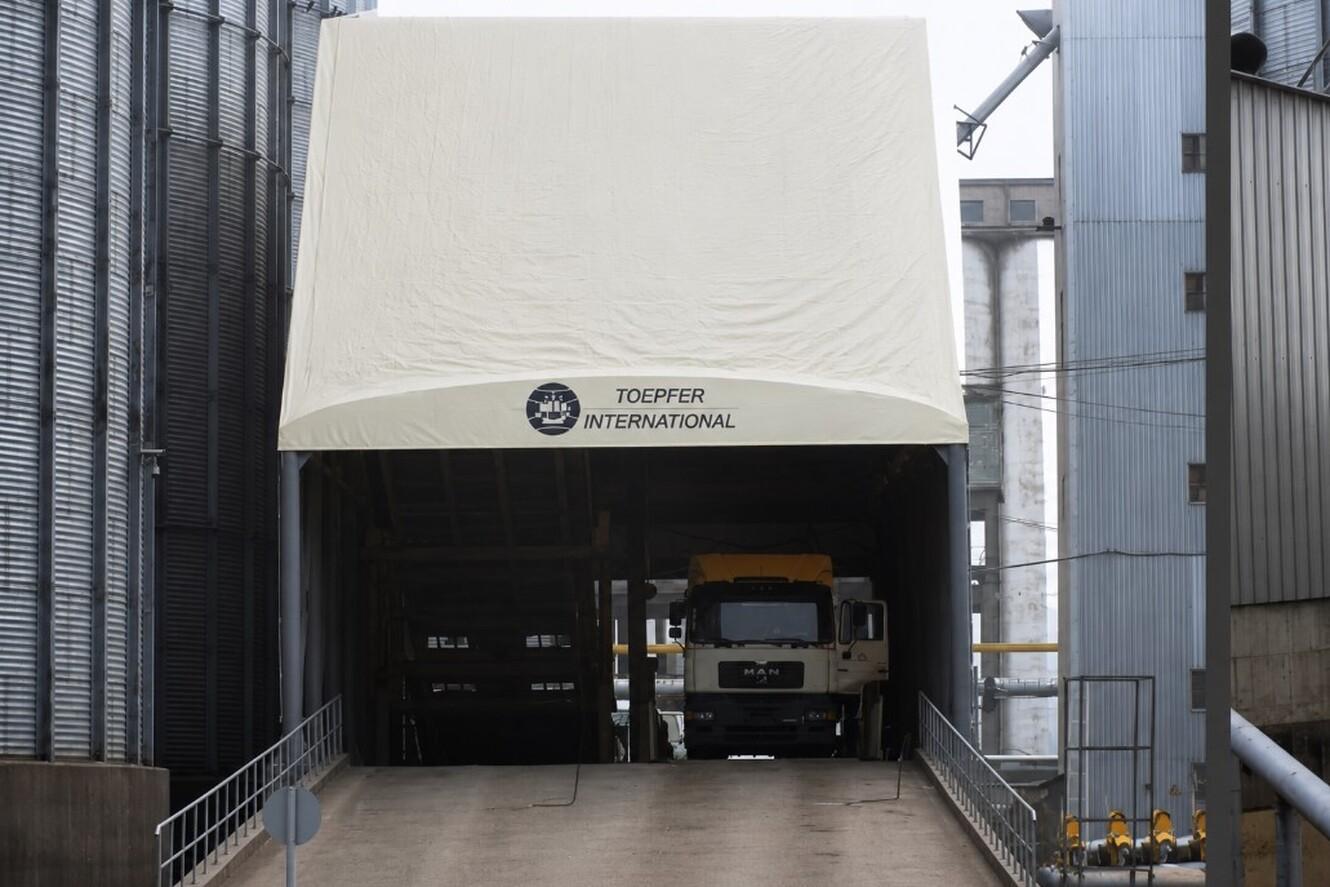

• 2017 — modernization of the dust suppression system at the truck unloading station as part of increasing the capacity of the conveying lines.
• 2026 — installation of a ZEO-FUV-50.19 special vertical local filter for grain aspiration. This model provides an airflow capacity of 7,000–10,000 m³/h and a filtration efficiency of 99.0–99.6%.

Equipment

• Filter cabinets ZEO-FW-12500
• ZEO-C4 cyclone battery unit
• Cyclone filters ZEO-FCS
• ZEO-VAB Flap system
• ZEO-FUV-50.19 special vertical local filter

Results

• Dust suppression efficiency — 80–85%.
• Dust collection efficiency — up to 99%.
• At the modernized truck unloading station, the dust suppression rate reached 99.7%.
• Energy consumption at the truck unloading station was reduced by 15%.
• Reduced dust impact on the port area and adjacent waters.
• Improved sanitary working conditions for personnel.
• Compliance of the implemented solutions with fire and explosion safety requirements.

Customer comment

Implementation period:

2009-26
